The marine-grade cabinet is constructed with 18mm 15-layer birch impored plywood, featuring a treble horn combinable with
on-site adjustable coverage angles of 50°–100° (H) × 55° (V) and a horizontal box angle adjustable from 15°–55°. The system
suppors active module integration, with both interior and exterior suraces treated for salt spray resistance, high-temperature
resistance, sterilization, and moisture resistance to ensure all-weather functionality. Multiple hanging accessories are

Application scope：Conference Rooms，Background Music，Gastrobar，Broadcast， Monitor，Stage front

Parameters

Application scope：Conference Rooms，Background Music，Gastrobar，Broadcast， Monitor，Stage front

Previous : MF-10 Multi-Angle Single 10-Inch Full-Range Speaker

Copy product links

Long by picture save/share

INQUIRY

Online Inquiry MORE+

Name *
Phone *
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

PRODUCT PARAMETERS

Configuration	1-Way Driven 2-Way Full-Range Speaker
Module Composition	LF: 1×8''，HF: 1×1.45''
Power Handling (Rated/Peak 10ms)	240/960W
Frequency Response	77Hz-19kHz
Nominal Impedance	8Ω
Max SPL	123dB
Coverage Angle	50°(H)×80°(V)
Dimensions (H×W×D)	410×275×240(mm)
Weight (Net)	9.5kg
Connection Socket	2×NL4
Connection	+1/-1
Cabinet Finish	Black Polyurea Paint

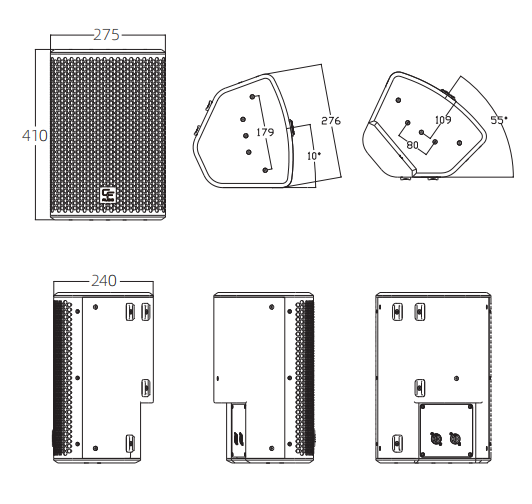

PRODUCT DIMENSIONS
